| Chuck size |
|
| Swing over bed |
33.46" |
| Swing over carriage |
19.69" |
| Center distance |
39.37"-196.85" |
| Loading cap. Bet. Center (kg) |
3000 (6600 lbs) |
| Main moter |
- 40/50 HP
|
| Spindle speed |
3 gr oup 10-1800 rpm |
| Spindle bore |
4.13" |
| Front bearing diameter |
6.69" |
| Tailstock taper |
MT No. 6 |
| Rapid feed speed |
X=236 Z=354/236 |
| Type of turret |
H4, V8, H4 + V8 |
| Machine weight (kg) |
- 8400 (18480 lbs)
- 116000 (25520 lbs)
|
|
| Chuck size |
|
| Swing over bed |
33.46" |
| Swing over carriage |
19.69" |
| Center distance |
39.37"-196.85" |
| Loading cap. Bet. Center (kg) |
3000 (6600 lbs) |
| Main moter |
- 40/50 HP
|
| Spindle speed |
2 group 10-1120 rpm |
| Spindle bore |
6.89" |
| Front bearing diameter |
10.0" |
| Tailstock taper |
MT No. 6 |
| Rapid feed speed |
X=236 Z=354/236 |
| Type of turret |
H4, V8, H4 + V8 |
| Machine weight (kg) |
- 8400 (18480 lbs)
- 116000 (25520 lbs)
|
|

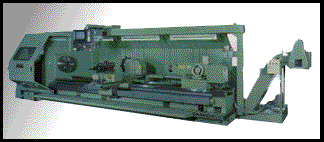

- The bed is one-piece construction (630 mm (24.8") in width) with
double V ways to ensure smooth and accurate turning.
- Pendant-type control panel can be positioned beside long bedways for
easy operation from any position.
- A wide range of spindle speeds (from 10 - 1800 rpm) and high torque
turning (385 kgm) can be obtained.
- Tailstock body and quill are programmable as standard.
- The Big Chucker MC85 has a 95 mm (33.9") turning diameter - horizontal
4-way, horizontal 6-way or twin horizontal 4-way are available.
|
- The bed is one-piece construction (630 mm (24.8") in width) with
double V ways to ensure smooth and accurate turning.
- Pendant-type control panel can be positioned beside long bedways for
easy operation from any position.
- A wide range of spindle speeds (from 10 - 1800 rpm) and high torque
turning (385 kgm) can be obtained.
- Tailstock body and quill are programmable as standard.
- The Big Chucker MC85 has a 95 mm (33.9") turning diameter - horizontal
4-way, horizontal 6-way or twin horizontal 4-way are available.
|
